New 1470nm PLDD Laser Machine Spinal Disc Decompression
What is Laser Disc Decompression?
Percutaneous laser disc decompression (PLDD) is a method of
relieving pressure on nerve roots in the spine, such as from
herniated discs. Compressed nerve roots can cause pain, tingling,
numbness, weakness and other symptoms in the back, neck, arms and
legs.
Instead of surgically removing the source of the compression, laser
disc decompression works by using laser energy to destroy it. PLDD
is safe, effective and minimally invasive, and for these reasons it
is the procedure of choice at Edison Spine Center.

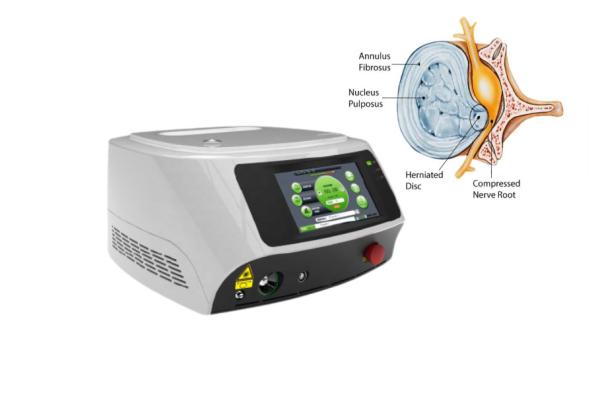

Operated with 400um/600um fiber optic, Chearylas 1470nm laser
system is a versatile, multifunctional
medical diode laser machine ideal for minimal invasive PLDD.
The Cherylas 1470nm, with higher water absorption, enables
precision ablation and highly localized heating, being advantageous
around critical structures. thanks to its outstanding interaction
in water and haemoglobin and moderate penetration depth into disc
tissue, enables procedures to be carried out safely and
accurately,especially in proximity of delicate anatomical
structures.
High Quality Laser Diode Technology
Laser diodes are the heart of the laser unit and have been selected
for high levels of quality, efficiency and reliability. Featuring
solid state technology, they are manufactured in Germany by Lumics,
Inc. which is a recognized worldwide leader for producing the
highest performing diodes. This ensures superior operating life
resulting in long term savings in operating costs.
Maximum Range Of Power(Watts )Level
Multiple power (watts) levels are available in different power
configuration models from 1-60 watts. These power (watts) levels
can provide significantly more energy than other medical & surgical
diode lasers. The higher power (watts) level laser models provide
faster treatment times and delivery of optimal energy dosages, an
enhanced ability to treat difficult conditions, and enhanced
clinical outcomes.
Interactive User Interface
Treatments can be administered and managed with three options: 1)
Manual Protocols using the power level, operating mode and timer
selections; 2) Preset Protocols that utilize a built-in database of
protocols that are organized by anatomy and condition; 3) Custom
Protocols that allows the user to create their own unique
protocols.
Choice Of Different Operating Modes
Two operating modes Continuous Wave (CW) or Pulsed Modes
(50khzFrequencies) are built into the diode laser equipment. The
specific power level (watts) can be adjusted through progress bar
on the color touchscreen. The Pulsewidth can be operated using
different units, like you can set duration 50us, interval 1ms.
Medical Diode Laser Machine Of Excellent Design
S-shape design to protect laser moduel from a damage caused by
accidental impact.
Specifications
| Laser Type | GaAIAs Diode Laser |
| Wavelength | 1470nm |
| Peak Power | 15w |
| Operation Mode | CW, Single / Repeat Pulse |
| Pulse Duration | 10us-3s |
| Repetition Rate | 0.2Hz-50KHz |
| Pilot Beam | Red Diode Laser of 650nm, Power<5mw |
| Control Mode | High resolution 7inch Touch screen (600*1024px) |
| Transmission System | Medical Fibers With SMA905 Connector |
| Dimensions | 380(W)*430(L)*220(H)mm |
| Weight | 11KG |
What are the advantages of Laser Disc Decompression?
PLDD can be an effective and attractive procedure for the right
patient. One of its biggest advantages as a first procedure is that
if it proves ineffective, open or minimally invasive surgery can
still be performed at a later date.
Other advantages include:
No incisions
No scarring
No general anesthesia
Outpatient procedure – no hospital stay required
Short recovery time – average time to return to work was one week
Low reoperation rate
Accessories
Dimed providing a full set of high quality standard and optional
accessories, such as puncture needle, Y-valve,optical fiber, safety
goggles, footswitch, fiber
cutter, carry case, cart and etc.
