1470nm laser Endovenous Laser Therapy medical diode laser

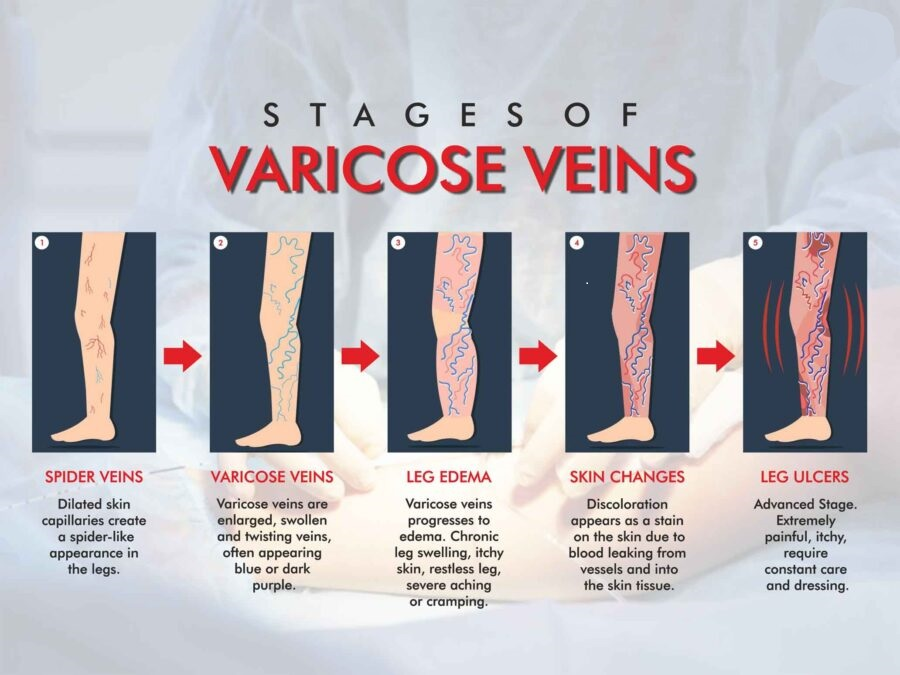

What Are Varicose Veins?
Veins are vessels that drain blood from the body's peripheral parts
and channel it back to the heart. Varicose veins are enlarged,
deformed, superficial veins in which blood flow is slowed or even
reversed compared to the normal venous circulation. Varicose
disease results from stretching of the vein walls and malfunction
of the valves that normally direct blood back to the heart. Spider
veins, or telangiectasia, are tiny varicose veins.
The Vein Treatment Centre specializes in the treatment of varicose
veins. Our doctors and staff are highly experienced and qualified
in the treatment of spider veins as well. Let The Vein Treatment
Centre provide you with the best possible care and most appropriate
treatment solution for your specific situation.
dual wavelength 1470nm Minimally invasive laser is an outstanding surgical laser machine designed for endovenous
laser treatment. It has a compact and modular design mainly in
silver aluminum alloy housing and black tempered glass panel,
exuding soft luster, aesthetic feeling and delicate texture. It has
a light weight and small size,which is easy to carry and easy in
cleaning.
980nm achieving high absorption simultaneously through hemoglobin
and water, due to its wavelength, thus with a high ablation
capacity which leads to complete clusure of treated vein . The
1470nm wavelength,cooperating with a radial, is very precise and
additionally protects the patient against excessive heating of the
tissues surrounding the removed vein.
Sensitive Touch Screen And Easy-To-Use Interface
surgical laser gets a 7-inch color touch screen with high
resolution 1024*600px that users can easily perform various kinds
of surgical treatments or make various settings in a few taps.
The intuitive operation system with power level, three operating
mode (cw, single pulse, repeat pulse) and timer selections allows
the user to use, adjust and save protocols easily.
The screen brightness can be customized and adjusted for each
operating environment.
Technical Specifications Of Harlas Surgical Laser
| Laser Type | GaAIAs Diode Laser |
| Wavelength | 980nm | 1064nm | 1470nm | 980nm+1470nm | 650nm+810nm+980nm+1064nm |
| Maximum Power | 10w/15W | 30W | 15W | 15W+10W | 2mW+15W+15W+15W |
| Operation Mode | CW, Single or Repeat Pulse |
| Pulse Duration | 10us -3s |
| Repetition Rate | 1Hz-20KHz |
| Pilot Beam | Red Diode Laser of 650nm, Power <5mW |
| Control Mode | True Color Touch Screen (7 inches, resolution 1024*600px) |
| Transmission System | Medical Fibers with SMA905 Connector |
| Dimensions | 148(W)*208(L)*265(H)mm |
| Weight | 4.1KG |

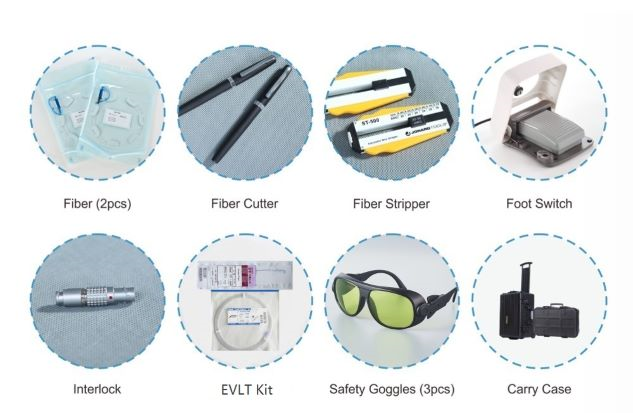

Providing A Complete Set Of Accessories
Harlas surgery laser equipment is specially developed with a full
set of accessories which makes it available for multiple surgery
and therapy treatment uses. Its accessories include safety goggles,
fiber cutter, fibers, footswitch, surgical handpieces, fiber
stripper, therapy handpieces. The full-range of accessories and our
comprehensive services will bring you a convenient one-stop
experience.
Stable Working Performance, Long Stability And Competitive Price
Harlas surgical laser is designed with enhanced internal hardware
structure and optimized software programs that it can be applied in
various surgery and therapy scenarios for a long time with optimal
performance and reliability. We also provide excellent after-sales
service, free-warranty service and custom service for our
customers. While maintaining the Germany quality, we provide
competitive price for wholesalers and distributors!
