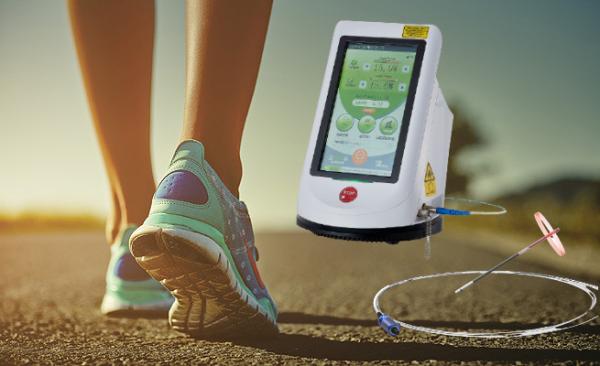

Berylas 980 varicose veins treatment EVLT laser machine vascular removal
Varicose Veins Treatment Options
Varicose veins are traditionally treated with Vein Stripping
Surgery, which requires a cut in the groin area under general
anaesthesia to tie off the vein. A few incisions are made to
isolate the vein and the whole vein is stripped or pulled off.
Radiofrequency Therapy is one of the methods in treating varicose veins, which involves insertion of a catheter into the vein and heating up the interior wall of the vein using radio waves. The vessel wall and neighbouring connective tissue denature and contract.
Laser Varicose Veins Treatment
Laser Varicose Veins is a modern technology using laser energy to
treat the defective veins through complete closure of the vein.
A unique 360o circular energy emission fine laser fiber is inserted
into the vein, under ultrasound guidance, laser pulses are
delivered inside to seal the varicose veins.
Patient can walk immediately after the Laser Treatment with no visible scars.
Treatment Procedures: Step by Step
Step 1:
Laser fiber is inserted into the vein.
Step 2:
Laser energy is activated in the vein.
Step 3:
Vein is closed while laser fiber is slowly removed.
Berylas 980nm diode laser it is one ideal and cost-effective
Varicose Veins treatment machine.
Adopts 980nm wavelength semiconductor fiber coupled laser,
transmission laser energy through fiber coupling technology, the
laser penetrates deep into the blood vessels, according to the
principle of selective photoheat, oxyhemoglobin in red blood cells
in blood vessels is the main target color group, after absorbing
the laser energy, the heat energy is transmitted to the surrounding
endothelial cells, causes damage to the walls of blood vessels and
breaks down hemoglobin in the vessels, convert it into small groups
of molecules that are absorbed by the tissues, based on the skin
barrier science. Meanwhile, the skin can repair and regenerate
itself, the crushed hemoglobin and capillaries are absorbed by the
skin tissue, the space it occupies is covered by newly grown skin
tissue, thus achieves eliminates the red blood purpose.
Features
Full accessories
Technical Parameters
Laser Type | GaAIAs Diode Laser |
Wavelength | 980nm |
Maximum Power | 15W |
Operation Mode | CW, Single or Repeat Pulse |
Pulse Duration | 10us -3s |
Repetition Rate | 0.2Hz – 50KHz |
Pilot Beam | Red Diode Laser of 650nm, Power <5mW |
Control Mode | True Color Touch Screen (7 inches, resolution 1024*600px) |
Transmission System | Medical Fibers with SMA905 Connector |
Dimensions | 160(W) * 180(L) * 235(H)mm |
Weight | 2.1kg |
ENDOVENOUS LASER TREATMENT ADVANTAGES
There are many advantages to endovenous laser ablation:
![]() |
