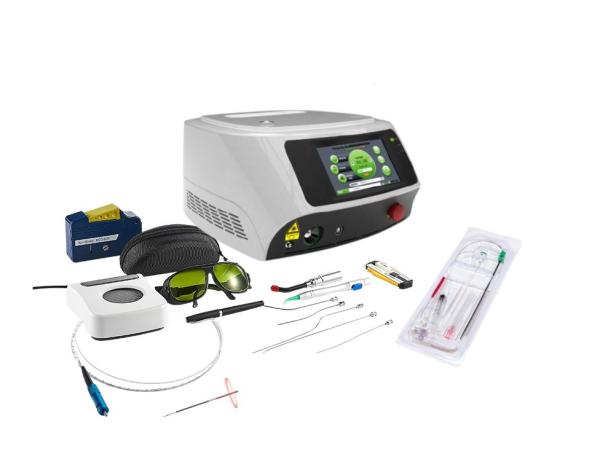

1940nm Varicose Veins Removal EVLT Surgical Laser Equipment
The most important object to achieve is to make soft procedures
easier for doctors and more comfortable for patients. Operated with
400um/600um fiber optic, Cherylas is a versatile, multifunctional
medical diode laser machine ideal for minimal invasive endovenous
treatment of varicose veins.
1940nm has the highest absorption coefficient in water as compared
to the Generationl to Generation 3 laser diodes (808 nm,980nm,
and1470 nm).This means that there is a higher absorption of the
laser energy by the interstitial water in thevenous walls.
Studies have proven that efficiency of 1940 nm laser to be the most
superior for EVLA than the others.In fact, it has been proven that
the
1940 nm laser diode has an absorption rate severaltimes higher than
1470nm laser and dozens of times higher than 98onm laser.
The water-based structure of the vein structure ensures that the
water-based lasers like1940 nm is preferentially absorbed
in the intercellular water of the vein wall and in the water
content of the blood. This results in less chance of collateral
heating bringing about optimal vein ablation.
Cherylas 1940nm laser is effective for vein closure by using
smaller doses of energy supplied to the vein ,
significantly reduces post-procedural pain and chances of
complication with less risk of burns
and related discoloration effects.
High Quality Laser Diode Technology
Laser diodes are the heart of the laser unit and have been selected
for high levels of quality, efficiency and reliability. Featuring
solid state technology, they are manufactured in Germany by Lumics,
Inc. which is a recognized worldwide leader for producing the
highest performing diodes. This ensures superior operating life
resulting in long term savings in operating costs.
Maximum Range Of Power(Watts )Level
Multiple power (watts) levels are available in different power
configuration models from 1-45watts. These power (watts) levels can
provide significantly more energy than other medical & surgical
diode lasers. The higher power (watts) level laser models provide
faster treatment times and delivery of optimal energy dosages, an
enhanced ability to treat difficult conditions, and enhanced
clinical outcomes.
Interactive User Interface
Treatments can be administered and managed with three options: 1)
Manual Protocols using the power level, operating mode and timer
selections; 2) Preset Protocols that utilize a built-in database of
protocols that are organized by anatomy and condition; 3) Custom
Protocols that allows the user to create their own unique
protocols.
Choice Of Different Operating Modes
Two operating modes Continuous Wave (CW) or Pulsed Modes
(50khzFrequencies) are built into the diode laser equipment. The
specific power level (watts) can be adjusted through progress bar
on the color touchscreen. The Pulsewidth can be operated using
different units, like you can set duration 50us, interval 1ms.
Medical Diode Laser Machine Of Excellent Design
S-shape design to protect laser moduel from a damage caused by
accidental impact.
Multiple Wavelengths
Diode laser of 810nm/940nm/980nm/1064nm/1210nm/1470nm/1940nm
Specifications
| Laser Name | CHERYLAS |
| Laser Type | GaAlAs Diode Laser |
| Wavelength | 810nm/940nm/980nm | 1210nm | 1470nm | 1940nm |
| Maximum Power | 30Watts/60watts | 15watts | 22watts | 6watts/12watts |
| Operation Mode | CW, Single Or Repeat Pulse |
| Pulse Duration | 50us- 3s |
| Repetition Rate | 0.2Hz- 10KHz |
| Pilot Beam | Red Diode Laser Of 650nm, Power<5mW |
| Control Mode | True Color Touch Screen (7 inches, resolution 600*1024) |
| Transmission System | Medical Fibers With SMA905 Connector |
| Dimensions | 380(W)*430(L)*220(H) mm |
| Weight | 11Kg |
Benefits
Perfect tissue effect
Micro-invasive percutaneous access
The procedure is accompanied by minimal pain
The procedure can be performed under local anesthesia
No risk of scarring
Faster return to normal activity - in most cases the patient does
not require a stay in a rehabilitation clinic
